EP-Fertilizer Spreader Gearbox – Replacement of Comer Code L-150J
The EP-L150J is a precision-engineered fertilizer spreader gearbox designed as a direct replacement for Comer Code L-150J units, delivering a 1:1.93 gear ratio at 540 RPM with a rated input of 8 kW and 137 Nm output torque. Built from high-pressure die-cast aluminum with a compact bolt pattern of 203.2 mm, it integrates seamlessly with standard 1-3/8″ Z6 PTO shafts used across Colombian sugarcane, rice, and pasture farming operations.

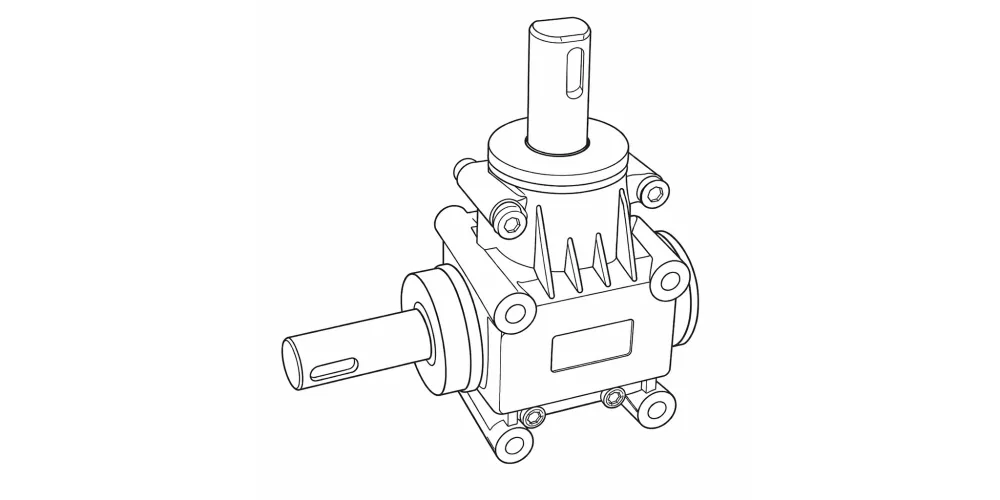

Fertilizer Spreader Gearbox – Replacement of Comer Code L-150J
EP-L150J Series | PTO-Driven Agricultural Distribution Gearbox for Spreader Equipment
1. Technical Specifications – EP-L150J Fertilizer Spreader Gearbox
| No. | Specification |
|---|---|
| 1 | The EPT-L150J gearbox ratio is 1:1.93. |
| 2 | The input shaft is a 1-3/8" round bore. |
| 3 | The output shaft has tapered splines, bushing must be ordered separately. |
| 4 | The gearbox is rated at 60 hp at 540 rpm and has a CCW (Counter-clockwise) rotation. |
| 5 | Fits Replacement of Comer Rotary Cutters. |
| 6 | The output shaft has tapered splines, bushing must be ordered separately. |
| 7 | The mounting pattern is 203.2mm. |
| 8 | Application: Fertilizers |
| 9 | Body Material: Aluminum |
| 10 | Entry Shaft: PTO Φ35/Z6 (1 3/8" z6) |
| 11 | Exit Shaft: Φ25mm with two vertical bores. Keyway not available. |
| 12 | Entry Power at 540rpm: 8KW |
| 13 | Lubrication: Grease. Not included. |

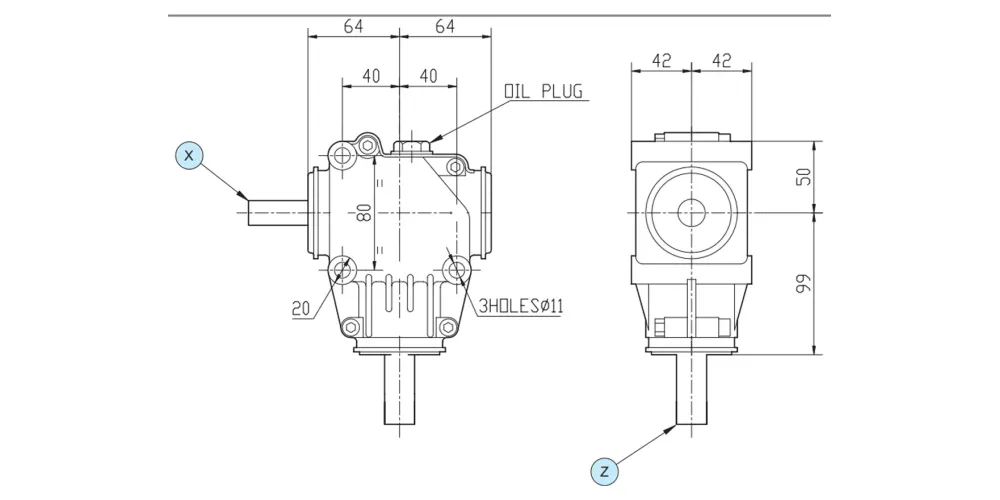

Configuration Options – Shaft Variants
| N1 [rpm] | P1 [kW] | M2 [Nm] | Output Shaft Type | Input Shaft (X) | Rotation (Z) |
|---|---|---|---|---|---|
| 540 | 8.0 | 137 | Φ25 mm | 1-3/8" Z6 | Z (CCW) |
| 540 | 8.0 | 137 | Φ25 mm | Φ25 mm | Z (CCW) |
| 540 | 8.0 | 137 | Φ3/4" | Φ3/4" | Z (CCW) |
2. Five Key Facts
- Direct drop-in fertilizer spreader gearbox replacement for Comer L-150J – no modifications needed.
- Input speed: 540 RPM; Input power: 8 kW (approx. 10.7 HP); Output torque: 137 Nm.
- Standard mounting bolt pattern: 203.2 mm – compatible with most OEM spreader frames.
- Aluminum alloy housing reduces overall machine weight and resists corrosion from fertilizer dust.
- Available shaft configurations: Φ25 mm with twin vertical bores, or Φ3/4" – enabling flexible PTO coupling options in the field.
3. What Is a Fertilizer Spreader Gearbox?
A fertilizer spreader gearbox is the mechanical heart of any tractor-mounted or self-propelled spreader system. It receives rotational power from the tractor's Power Take-Off (PTO) shaft and converts that energy into precisely regulated motion at the distribution impellers, discs, or rollers that spread granular fertilizer, lime, or seed across agricultural land. Without a well-engineered gearbox, uneven torque delivery would cause inconsistent spread patterns — wasting inputs, reducing crop yield, and increasing operating costs.
The EP-L150J gearbox for fertilizer spreader applications is engineered to serve as a complete mechanical replacement for the Comer Code L-150J. It uses the same mounting geometry, shaft specifications, and rotation direction, meaning that maintenance teams in Colombia and across South America can swap a worn-out unit without purchasing a new spreader frame. The internal gear train is machined to DIN 6 precision class, ensuring smooth power transmission, low vibration, and minimal noise during field operations — factors that directly affect operator comfort and long-term equipment reliability.
This unit is rated for continuous operation at 540 RPM, making it directly compatible with the standard 540 RPM PTO output found on most mid-range and heavy-duty tractors used in Colombian agriculture, from compact 40 HP machines working smallholder plots in the Andean coffee zones to 120 HP units covering the extensive sugarcane plantations of Valle del Cauca. The gear ratio of 1:1.93 provides the output speed required to achieve a uniform spread width while keeping the impeller disc speed within the recommended range for granular chemical fertilizers.
4. How Does a Fertilizer Spreader Gearbox Work?
Understanding how a fertilizer spreader works begins with the power transfer path. When the tractor operator engages the PTO, the main driveshaft — typically a telescoping shaft with universal joints at each end — begins rotating at 540 RPM. This shaft connects directly to the EP-L150J fertilizer spreader gearbox input flange via a 1-3/8" Z6 splined coupling. Inside the aluminum housing, a helical bevel gear set meshes to change both the axis of rotation and the speed, delivering 540 × 1.93 ≈ 1,041 RPM to the output shaft at a reduced torque of 137 Nm.
The output shaft — Φ25 mm with twin vertical bores — connects to the spreader disc shaft through a keyed or bolted coupling. As the disc rotates at elevated speed, centrifugal force throws granular material radially outward in a controlled pattern. The gearbox also protects upstream drivetrain components: because the gear reduction occurs before the disc, momentary blockages (caused by wet fertilizer clumping or stone ingestion) generate resistance at the disc rather than at the tractor PTO, and the slipping torque protection in the PTO shaft prevents damage to the gearbox.
Lubrication in the EP-L150J fertilizer spreader gearbox is handled by grease-packed bearings rather than an oil sump, which eliminates the risk of oil leaks in machines that operate at severe tilt angles on hillside terrain — a common scenario in the Andean agricultural regions of Colombia, Ecuador, and Peru. Grease must be applied to the specified grease nipples at the recommended intervals to prevent bearing seizure, particularly in high-dust environments where fertilizer powder infiltrates around shaft seals.
5. Five Key Product Advantages
1. Exact OEM Dimensional Fit
The 203.2 mm mounting bolt pattern and 1-3/8" Z6 input spline are machined to the same tolerances as the original Comer L-150J, meaning zero reworking is required during installation. Downtime on Colombian farms during the planting season is costly — this drop-in compatibility keeps machinery running without delays.
2. Lightweight Aluminum Alloy Housing
The die-cast aluminum body weighs significantly less than cast iron alternatives, reducing the total suspended mass at the rear of the tractor. This is particularly important for hillside operations in Antioquia and Nariño departments, where front axle loading must be carefully managed to maintain traction and steering authority on steep terrain.
3. Precision Gear Machining (DIN 6 / ISO 7)
Gear flanks are ground to DIN 6 accuracy class, which corresponds to a pitch error of less than ±0.010 mm per tooth. This level of precision eliminates the micro-shock loads that gradually destroy bearings in lower-quality castings, extending service life well beyond the typical 500-hour threshold observed with budget replacements available in the Medellín wholesale market.
4. Multi-Output Shaft Configurations
Three output shaft variants — Φ25 mm with dual vertical bores, tapered splines (bushing sold separately), and Φ3/4" — allow this single gearbox model to serve multiple spreader brands and designs without requiring separate part numbers. For fleet managers operating mixed-brand equipment across large estates in Valle del Cauca's sugarcane belt, this consolidation reduces spare parts inventory overhead considerably.
5. OEM & Wholesale Supply Capability
As a direct manufacturer of fertilizer spreader gearbox parts, we support OEM branding, custom packaging, and consolidated export shipments. Distributors in Barranquilla, Bogotá, and Cali can order in full pallet or container quantities with short lead times, supporting the regional demand for a reliable spreader gearbox OEM supplier Colombia network.
6. Materials & Construction
The EP-L150J fertilizer spreader gearbox is built from a carefully selected material stack, with each component chosen to balance mechanical performance against the corrosive and abrasive demands of the agricultural environment.
The housing is high-pressure die-cast from aluminum alloy, offering a strength-to-weight ratio superior to malleable iron while being inherently resistant to the acidic residues left by nitrogen-based fertilizers such as urea and ammonium sulfate. The aluminum surface is treated to resist oxidation, maintaining dimensional stability across the temperature swings typical of tropical Colombian lowlands — from 38°C midday heat in the Magdalena Valley to night-time temperatures below 10°C in highland coffee plots.
The gear wheels are manufactured from low-alloy case-hardening steel (equivalent to 20CrMnTi or AISI 8620), carburized and quenched to achieve a surface hardness of 58–62 HRC on the tooth flanks while retaining a tough, ductile core above 35 HRC. This combination withstands the impact loading caused by PTO shock starts — a common problem on tractors without torque-limiting clutches — without tooth fracture or pitting fatigue. Gear tooth profile is generated by CNC hobbing and finished to a surface roughness of Ra ≤ 0.8 µm on active flanks.
Deep-groove ball bearings (2RS sealed, equivalent to ISO 6205 or 6206 series) support both the input and output shafts. The 2RS rubber seal retains the pre-packed grease and excludes fertilizer dust and moisture, extending re-greasing intervals in field conditions. Bearing L10 calculated life at rated load exceeds 3,000 hours.
All fasteners and retaining hardware are zinc-plated carbon steel, providing corrosion protection sufficient for the typical equipment wash-down cycles used in South American farming operations. An optional stainless fastener kit is available upon request for coastal operations near Barranquilla where salt-laden humidity accelerates corrosion.
7. Regulatory & Industry Standards Compliance
Agricultural equipment operating in Colombia and other target export markets must comply with a range of national, regional, and international standards. The following regulations are relevant to the selection and use of a gearbox for fertilizer spreader equipment.
Colombia (National Standards)
Colombia's Instituto Colombiano de Normas Técnicas y Certificación (ICONTEC) publishes NTC standards aligned with ISO frameworks. Agricultural machinery and tractor-mounted implements are expected to conform to NTC-ISO 4254 series (agricultural machinery – safety) and NTC 2050 (electrical installations), where applicable. The Colombian Ministry of Agriculture and Rural Development (MADR) oversees the import and commercialization of agricultural inputs and machinery under Decree 1071/2015, which requires that imported equipment meets its country-of-origin safety certifications. Buyers importing fertilizer spreader gearbox replacement parts Colombia should verify that CE marking or equivalent documentation accompanies the shipment.
European Union (CE / Machinery Directive)
The EU Machinery Directive 2006/42/EC requires that PTO-driven equipment sold in the European market carries CE marking and a Declaration of Conformity. This directive mandates specific guard requirements around rotating PTO shafts and gearbox input couplings. The EP-L150J fertilizer spreader gearbox is designed to accept standard PTO shaft guards compliant with EN 12965 (protective devices for power take-off drive shafts). For export to Spain, Portugal, or other EU markets, the gearbox ships with documentation supporting CE compliance upon request.
United States (ASABE Standards)
The American Society of Agricultural and Biological Engineers (ASABE) standards S203.13 and S318 define PTO shaft interface dimensions and guarding requirements for North American markets. The 1-3/8" Z6 input shaft specification on the EP-L150J fertilizer spreader gearbox is fully compliant with ASABE/ANSI S203.13, making it compatible with all North American standard PTO couplings.
ISO International Standards
The gearbox is designed in accordance with ISO 9001:2015 quality management principles. Gear geometry conforms to ISO 1328-1 (cylindrical gear accuracy) and ISO 6336 (gear load capacity calculation). Bearing selection follows ISO 281 fatigue life calculation methodology. Environmental management during production follows ISO 14001 principles, minimizing machining waste and recycling aluminum scrap into the foundry process.
8. Application Scenarios
Sugarcane Fertilization – Valle del Cauca, Colombia
Sugarcane crops require multiple applications of urea, potassium chloride, and nitrogen-sulfur blends throughout the growing cycle. The EP-L150J spreader gearbox for sugarcane farming Colombia operates reliably in the dense, humid conditions of the Cauca River valley. Its sealed bearings handle the moisture and fine soil dust that infiltrate equipment in this environment, and the aluminum housing resists the mild acidity of sulfur-coated fertilizer granules.
Coffee & Pasture Land Maintenance – Andean Highlands
On Colombia's coffee estates in Huila, Nariño, and Antioquia departments, farmers apply lime and phosphate to maintain soil pH on steep hillside plots. The compact, lightweight design of the EP-L150J fertilizer spreader gearbox allows it to be fitted to small to mid-size tractors (40–80 HP) operating on grades up to 20°. The grease-lubricated design eliminates oil spill risk when the spreader is parked or transported at steep angles.
Rice & Corn Production – Llanos Orientales
The flat, expansive Llanos Orientales region of Colombia supports high-volume cereal production. Farmers here run spreaders for extended periods during planting season, demanding continuous-duty performance from the gearbox. The rated input power of 8 kW at 540 RPM is calibrated for exactly this sustained workload, and the 137 Nm output torque handles the rotational resistance of disc spreaders spreading blended NPK granules across wide working widths.
OEM Manufacturing & Spreader Assembly Lines
Agricultural machinery manufacturers in Colombia, Brazil, and Argentina source the EP-L150J fertilizer spreader gearbox as an OEM component for their own branded spreader lines. The standardized 203.2 mm bolt pattern and dual-bore Φ25 mm output shaft allow OEM engineers to design spreader decks around a known, repeatable gearbox interface. Our compact fertilizer spreader gearbox Colombia supply program supports JIT delivery to assembly plants in Bogotá and Barranquilla.
Export Markets – Peru, Ecuador & Central America
Beyond Colombia, the EP-L150J fertilizer spreader gearbox supplies the banana, palm oil, and cut-flower export sectors of Ecuador and Peru, where European spreader brands dominate the market. As a genuine drop-in replacement, this gearbox allows local dealers to offer faster, more affordable servicing than waiting on spare parts shipments from European OEM suppliers. A farm equipment gearbox distributor in Medellín or Lima can stock a single SKU to cover multiple European spreader models that originally shipped with Comer L-150J units.
9. About Us
We are a professional manufacturer of agricultural gearboxes and power transmission components with decades of industry experience. Our engineering team possesses deep expertise in designing and manufacturing fertilizer spreader gearboxes, power take-off shaft drive gearboxes, and related transmission system components, exporting our products to over 60 countries. Our production facilities are ISO 9001:2015 certified and equipped with dedicated CNC machining units, gear grinding production lines, and coordinate measuring equipment to ensure dimensional consistency in every batch.

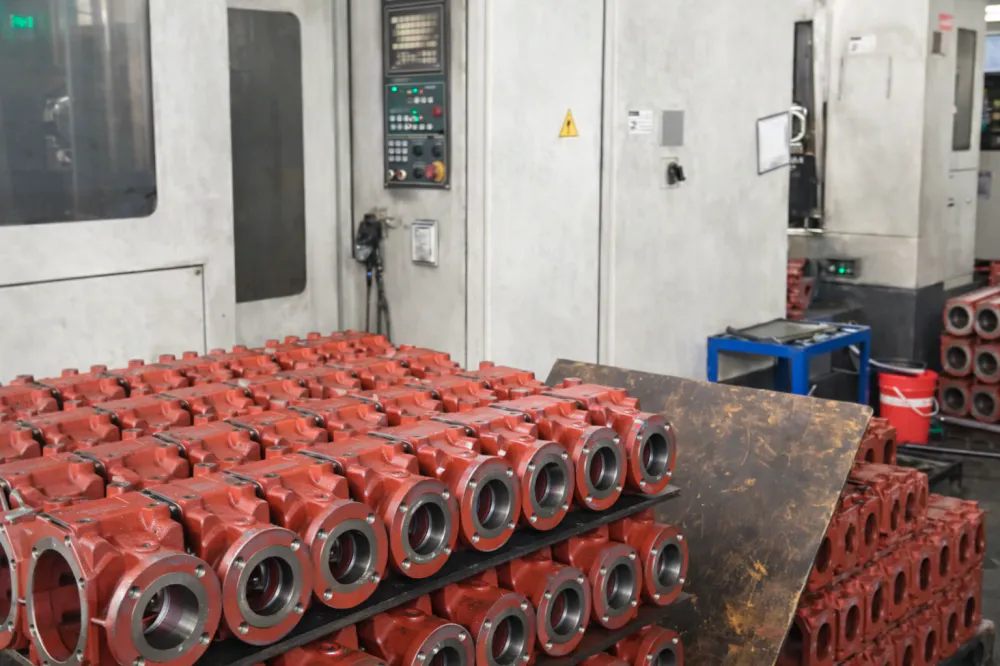

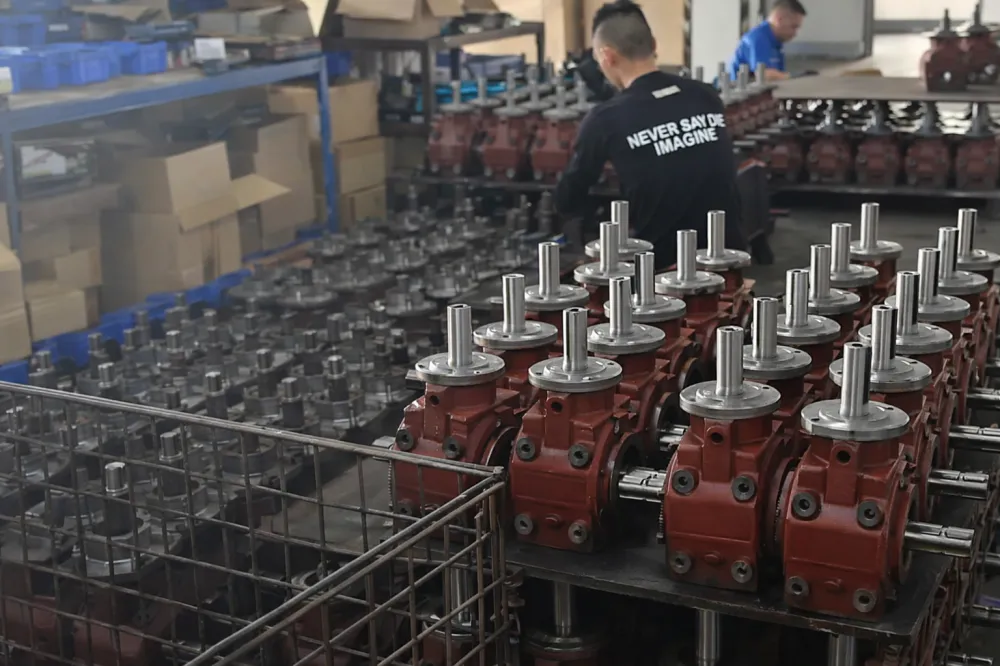

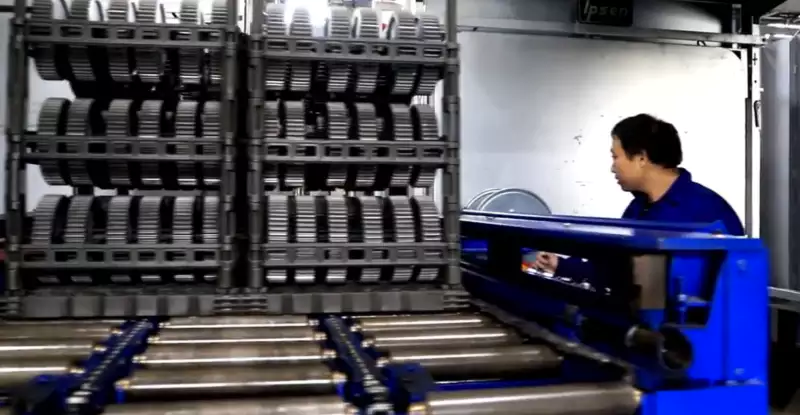

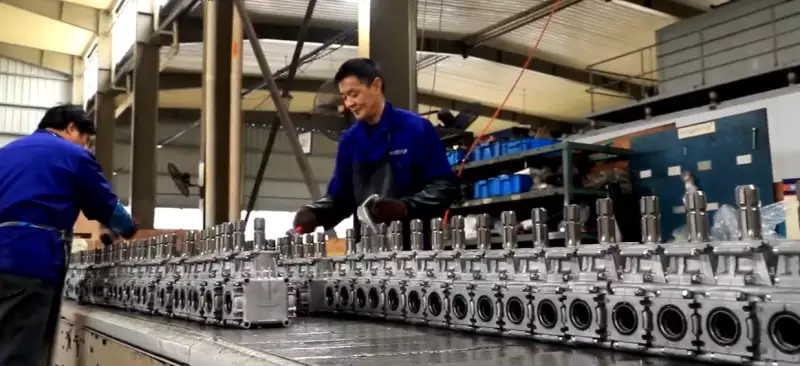

WorkShop
10. Related Products & Complete System Solutions
A complete fertilizer application system requires more than just the gearbox. We manufacture and supply the full range of compatible driveline and agricultural machine components, giving you a genuine one-stop-shop advantage — fewer vendors to manage, consistent quality standards across all parts, and simplified customs documentation for container-mixed exports.

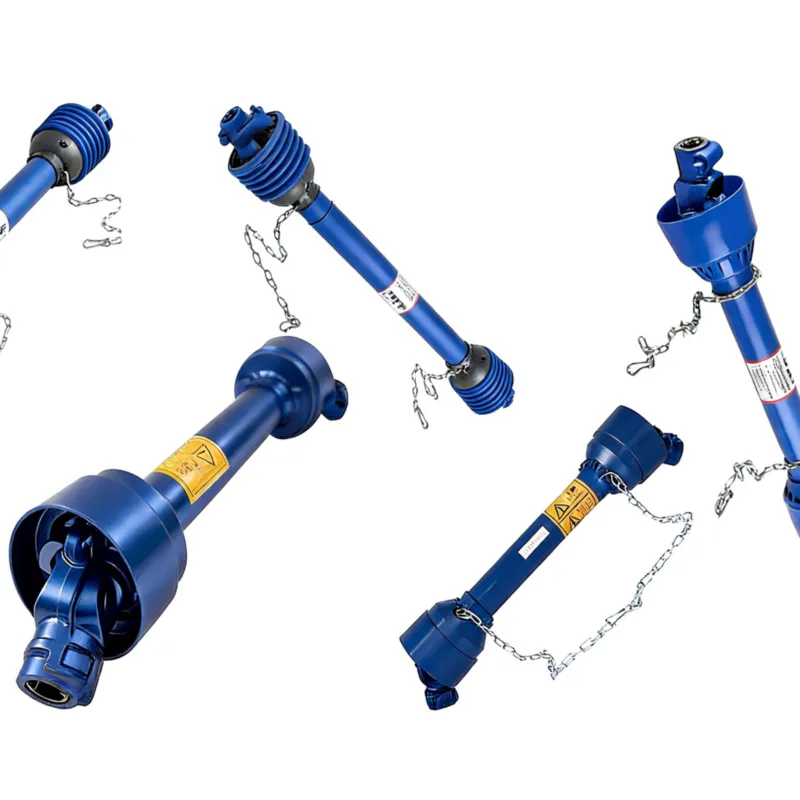

PTO Shafts
A correctly matched agricultural PTO drive shaft is essential for transmitting full rated power to the EP-L150J without vibration or premature wear. Our telescoping shafts with cross-and-yoke universal joints are rated from 540 to 1,000 RPM and include CE-compliant protective shield tubes. Available in 1-3/8" Z6 and 1-3/4" Z6 end profiles to match your tractor and gearbox specifications.

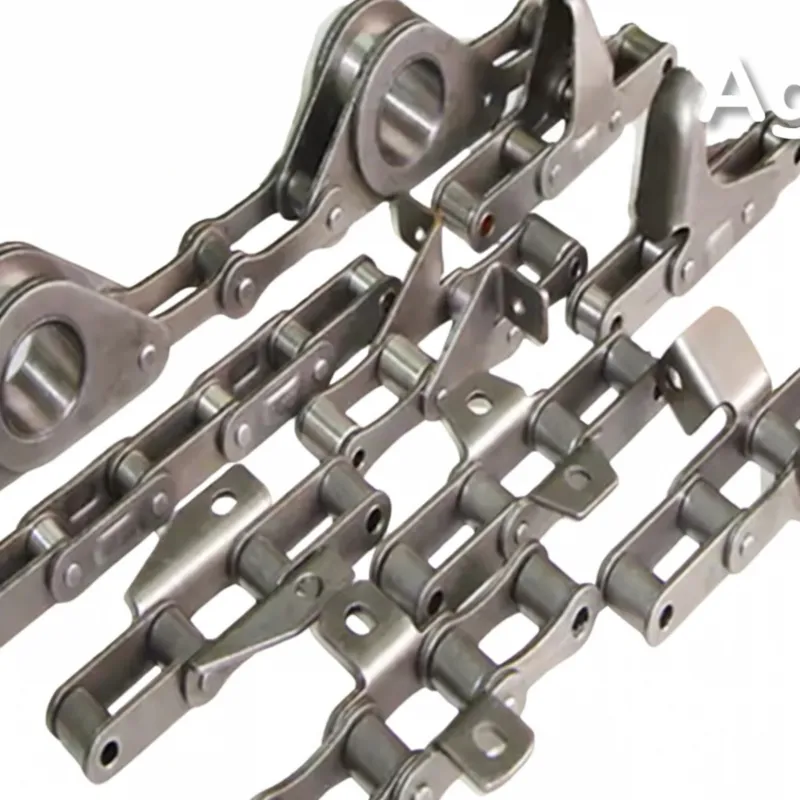

Roller Chains & Agricultural Drive Chains
Internal chain drives within some spreader models connect the gearbox output to secondary distribution mechanisms. Our heavy-duty agricultural roller chain range — including #40, #50, and #60 ANSI series — is manufactured from case-hardened carbon steel with shot-peened link plates for fatigue resistance. System compatibility with the EP-L150J fertilizer spreader gearbox output shaft ensures seamless integration across the full spreader drivetrain.
Sprockets & Agricultural Drive Accessories
We supply a full range of sprockets, couplings, and transmission accessories designed for use alongside our gearbox range. Our sprocket lineup — available in simplex and duplex formats to ANSI B29.1 and ISO 606 standards — covers the complete chain sizes used in spreader, baler, and mower drivetrains. Combining sprockets with our gearboxes and chains from a single source eliminates tolerance mismatch between components and simplifies the spare parts management process for fleet operators.
Frequently Asked Questions
Q1. What is the best fertilizer spreader gearbox replacement for Comer Code L-150J units used on Colombian sugarcane farms?
The EP-L150J is the recommended direct replacement. It shares the identical 203.2 mm bolt circle, 1-3/8" Z6 input spline, and CCW rotation direction as the original Comer L-150J, meaning no adaptor plates or rework are needed. It has been validated in the field on Colombian sugarcane estates operating in Valle del Cauca and Cauca departments, confirming compatibility with the conditions typical of that region.
Q2. How does a fertilizer spreader gearbox work with a standard tractor PTO system in the field?
The gearbox connects between the tractor's 540 RPM PTO output shaft and the spreader disc shaft. It uses an internal helical bevel gear set to step up the disc speed to approximately 1,041 RPM at a 1:1.93 ratio while reducing the torque. The result is a high-speed, low-torque rotation at the disc that generates the centrifugal force needed to distribute granular fertilizer across a consistent spread width.
Q3. How does a compact fertilizer spreader gearbox compare to a heavy-duty spreader gearbox when choosing equipment for large-scale Colombian farming operations?
A compact unit like the EP-L150J (rated to 8 kW continuous / 60 HP intermittent) suits spreaders with working widths of 12–18 meters and hopper capacities up to 800 kg — ideal for most Colombian mid-scale farms. Heavy-duty gearboxes (typically 15–22 kW rated) are designed for 24+ meter spread widths on large estate farms exceeding 500 hectares. For the majority of sugarcane, palma de aceite, and cereal farms in Colombia, the compact L150J-class gearbox provides the right balance of performance, weight, and cost.
Q4. What type of lubrication does the EP-L150J fertilizer spreader gearbox require, and how often should it be serviced?
The EP-L150J uses grease-packed bearings rather than an oil sump. Grease is not supplied with the unit — apply a lithium complex NLGI #2 grease (or equivalent) to the grease nipples before first use and at intervals not exceeding 100 operating hours. In high-dust environments or when spreading hygroscopic fertilizers, reduce the re-greasing interval to 50 hours to prevent bearing contamination.
Q5. Which fertilizer spreader gearbox parts are most commonly replaced during routine maintenance in Colombian farming operations?
The most frequently replaced items are the input and output shaft bearings (typically 6205-2RS or 6206-2RS deep groove ball bearings), the output shaft seal, and the grease nipple fittings. On machines exposed to abrasive fertilizers, the output shaft bushing (when using the tapered spline output option) may also wear and require replacement every 2–3 seasons depending on operating hours and lubrication discipline.
Q6. How do I spread fertilizer evenly with a spreader using the EP-L150J gearbox — what settings should I check before starting?
Before each application, verify that the PTO shaft rotates freely, the gearbox grease nipples have been serviced recently, and the output shaft coupling is tight with no backlash. Set tractor PTO speed to 540 RPM. Check the hopper gate opening against the manufacturer's calibration chart for the specific fertilizer being applied. Conduct a tray test at the start of each day's work to confirm actual spread width and uniformity match the target pattern.
Q7. Which tractor brands and horsepower ranges are compatible with the EP-L150J fertilizer spreader gearbox compact fertilizer spreader gearbox used in Colombian agriculture?
The EP-L150J fertilizer spreader gearbox is compatible with any tractor equipped with a standard 540 RPM PTO and a 1-3/8" 6-spline (Z6) output shaft — which covers virtually all mid-range agricultural tractors sold in Colombia, including popular brands in the 40–120 HP range. This includes models commonly used in Colombian sugarcane, coffee, and cattle farming regions. The gearbox is rated for up to 60 HP (intermittent), making it suitable for most field-scale spreader applications.
