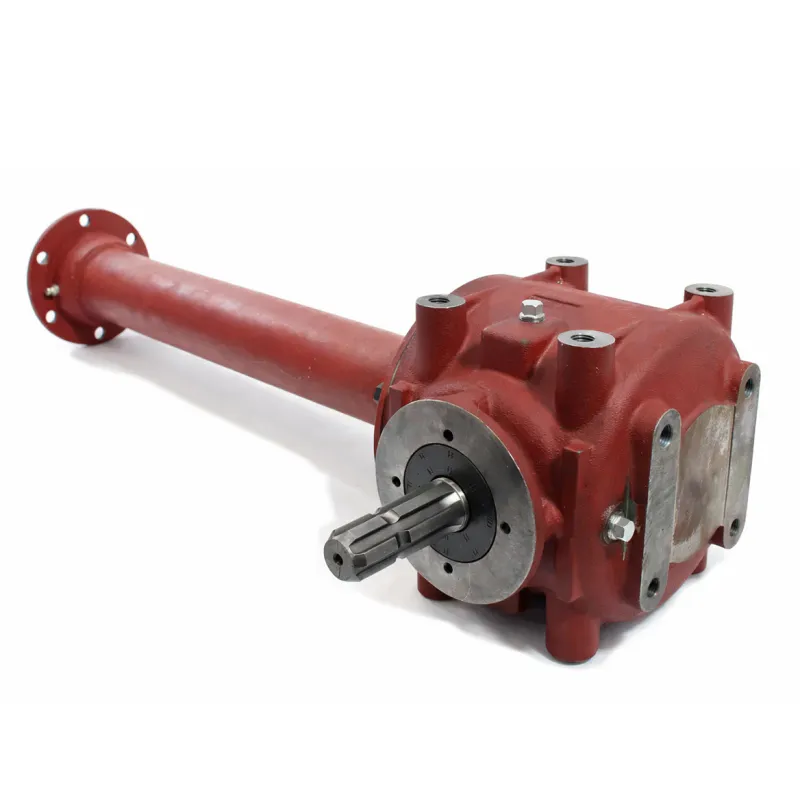

EP-Rotary Tiller Gearbox – Replacement of Comer Code TLZ-21J
The EP-Rotary Tiller Gearbox TLZ-21J, designed as a replacement for the Comer Code TLZ-21J, is a high-performance agricultural component that transmits power from a tractor’s engine to the tiller blades. With a robust design, this gearbox is built to handle heavy-duty tilling operations, offering high torque capacity and optimal gear ratios for efficient power transfer. Constructed with durable materials, it resists harsh agricultural conditions and minimizes the need for frequent maintenance. Easy to service, the gearbox facilitates efficient oil changes and component inspections.

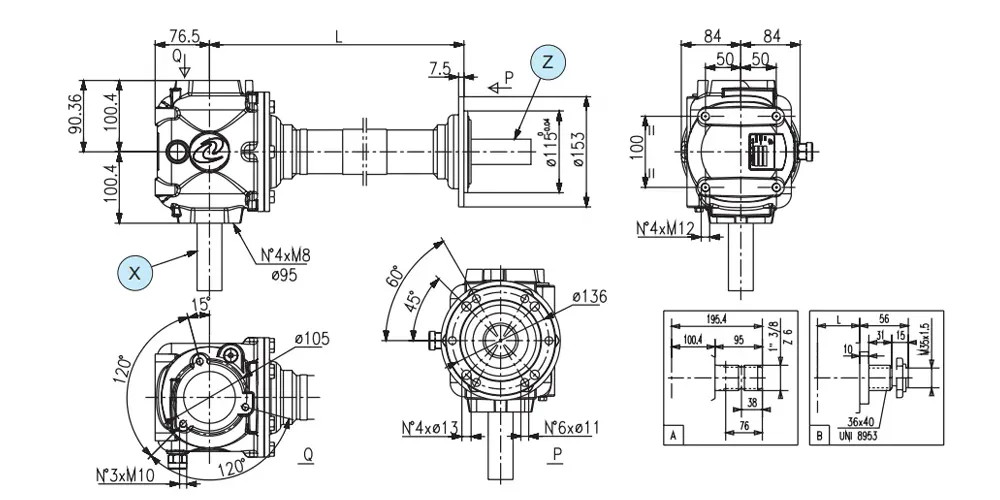

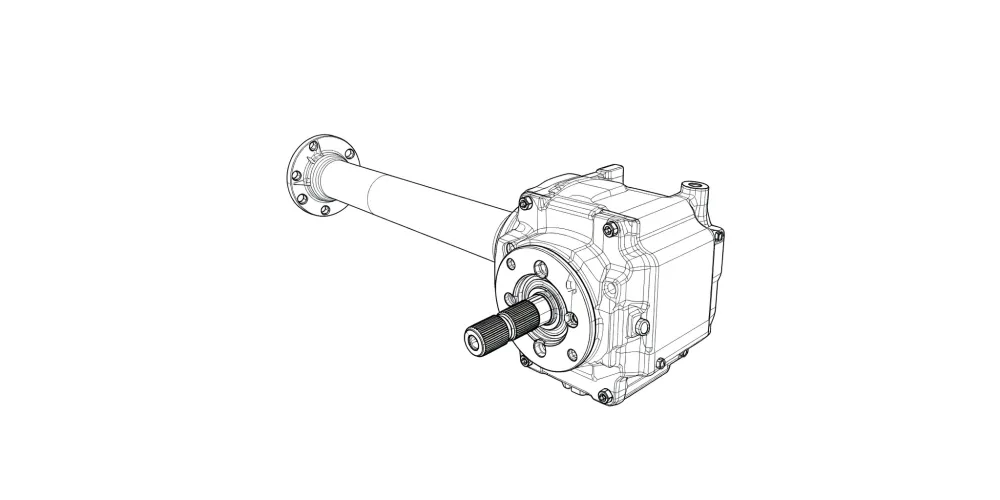

The EP-rotary tiller gearbox maintains full dimensional compatibility with the original Comer TLZ-21J, making it a drop-in replacement for existing tiller assemblies. The following parameters define its performance envelope and help procurement teams confirm suitability before ordering.
| Parameter | Value / Specification |
|---|---|
| Gear Ratio (i) | 1.46 |
| Input Speed (N1) | 540 rpm |
| Input Power (P1) | 29.4 kW |
| Output Torque (M2) | 736 Nm |
| Input Shaft (X) | 1″ 3/8 Z6 spline |
| Output Shaft (Z) | 36 × 40 mm |
| Drive Input | Shaft X (PTO-driven) |
| Comer Code Replacement | TLZ-21J |
| Housing Material | Cast iron (heavy-duty grade) |
| Gear Material | Alloy steel, case-hardened |
| Seal Type | Double-lip oil seals, dust-resistant |
| Lubrication | SAE 80W-90 gear oil (splash lubrication) |
2. How the PTO Driven Rotary Tiller Gearbox Works
Understanding the working principle of a tractor PTO driven rotary tiller gearbox helps operators set realistic expectations, configure their equipment correctly, and troubleshoot issues before they escalate into costly downtime. The EP-TLZ-21J rotary tiller gearbox follows the standard PTO-to-blade power transfer model, refined through years of feedback from field use across Latin America and beyond.
Step 1 — Power Source Activation: The tractor's engine generates rotational power that is routed through the Power Take-Off (PTO) system. When the operator engages the PTO lever, the output shaft begins spinning at 540 rpm — the standard speed for most mid-range agricultural PTO systems. This speed is consistent and directly controlled by the engine RPM, which the operator can adjust depending on soil conditions and required tilling depth.
Step 2 — Gearbox Connection: The spinning PTO shaft connects to the gearbox input shaft via a 1″ 3/8 Z6 splined coupler. This splined interface ensures secure engagement with zero slip, transmitting all available torque efficiently into the gearbox housing without energy loss at the connection point.
Step 3 — Speed and Torque Adjustment: Inside the housing, the gear train — configured at a ratio of 1:1.46 — converts the 540 rpm input into a lower output speed with proportionally higher torque. The resulting 736 Nm of output torque is what allows the tiller blades to cut through compacted, clay-heavy, or root-laden soils that would stall a lower-torque system. This internal adjustment is the core engineering value of the gearbox for tiller applications.
Step 4 — Power Output via Output Shaft: The adjusted rotational force exits through the output shaft (36×40 mm), which connects directly to the tiller's blade rotor assembly. The output shaft diameter and key configuration match the original Comer TLZ-21J exactly, ensuring that no adapter or modification is needed on retrofit installations.
Step 5 — Driving the Tiller Blades: As the output shaft turns, the blades mounted on the horizontal rotor penetrate the soil, cutting and overturning it in a consistent pattern. Properly set blade depth and a well-tuned gearbox output speed result in an even seed bed with good aeration — the kind of soil preparation that directly influences germination rates and early crop yield.
3. Five Key Advantages of the EP-TLZ-21J Rotary Tiller Gearbox
1. High Torque Output Built for Demanding Soil
At 736 Nm of output torque, the EP-TLZ-21J rotary tiller gearbox is designed for tilling operations where soil resistance is not trivial. Dense Andean volcanic soils, dried clay fields in the Caribbean lowlands, and previously un-tilled plots with compacted subsoil — this rototiller gearbox handles them consistently. The high torque rating also provides a buffer against sudden overload events caused by hidden roots or stone encounters, reducing the risk of internal gear damage during normal field use.
2. Optimized 1:1.46 Gear Ratio for Balanced Performance
The gear ratio of 1.46 is not arbitrary — it strikes the balance between blade rotational speed and the torque needed for effective soil penetration at 540 rpm PTO input. Running the blades too fast produces surface-level fluffing without depth; too slow means insufficient cutting speed in harder soils. This ratio was selected specifically for the tiller implement class this gearbox is designed to power, and it works well with tractors in the 30–50 HP range commonly used by Colombian smallholder and mid-scale farm operations.
3. Cast Iron Housing with Long Service Life
The housing is cast from heavy-duty grey iron, the same material class used in most original-equipment agricultural gearboxes due to its vibration-damping properties and resistance to impact loads. Unlike aluminum housings that can crack under shock loading, cast iron flexes minimally under stress and holds its dimensional shape over the long term. For a rotary tiller gearbox replacement parts Colombia scenario where fast availability matters, the robust housing also means fewer structural failures requiring complete replacement.
4. Straightforward Maintenance Design
Maintenance access has been a consistent consideration in this gearbox's design. The oil fill and drain ports are positioned for easy access with standard tools, the oil level inspection can be performed without removing the gearbox from the implement, and the bearing pre-load is factory-set during assembly. For farm operators in Colombia's more remote agricultural regions — where access to a specialist workshop is not always immediate — this kind of field-serviceable design directly reduces downtime risk and keeps the tilling schedule on track.
5. Direct Drop-In Comer TLZ-21J Replacement
The EP-TLZ-21J rotary tiller gearbox matches the original Comer Code TLZ-21J in all mounting dimensions, shaft profiles, and gear ratio. This compatibility eliminates the need for custom brackets, shaft adapters, or re-drilling of implement frames. For distributors and fleet operators managing multiple tiller units, this one-to-one replaceability simplifies spare parts inventory management significantly and makes the EP-TLZ-21J a practical choice as a standard stocked component for field maintenance programs.
4. Materials and Construction Quality
The performance longevity of any farm machinery gearbox is largely determined by the quality of the raw materials and the precision of the machining processes applied to them. The EP-TLZ-21J rotary tiller gearbox uses a material selection consistent with heavy-duty agricultural applications.
| Component | Material | Key Property |
|---|---|---|
| Gearbox Housing | Grey cast iron (GG25 grade) | High rigidity, vibration damping, impact resistance |
| Internal Gears | Case-hardened alloy steel (20CrMnTi or equivalent) | Surface hardness HRC 58–62, wear resistance, high fatigue strength |
| Input / Output Shafts | Forged medium-carbon steel, heat-treated | Torsional strength, dimensional stability under load |
| Bearings | Deep-groove / tapered roller bearings (SKF equivalent class) | Radial and axial load capacity, rated service life L10 ≥ 3,000 hours |
| Seals | NBR (nitrile rubber) double-lip oil seals | Oil retention, dust/mud ingress prevention, UV stability |
| Surface Finish | Epoxy-based agricultural paint | Rust prevention, UV resistance in tropical field conditions |
5. Application Scenarios
The EP-TLZ-21J rotary tiller gearbox is used across a wide range of agricultural and horticultural contexts. The following scenarios reflect actual use cases that match the gearbox's torque and speed characteristics, drawn from deployments across Latin America's diverse farming environments.
Grain and Corn Pre-Planting Tillage
In Colombia's Llanos Orientales and the Valle del Cauca, corn and rice production requires thorough pre-season soil preparation. The EP-TLZ-21J rotary tiller gearbox delivers consistent tilling depth and good soil particle uniformity, which directly supports even seed placement and germination. The 736 Nm output is sufficient for initial tillage in previously cropped fields, including those with residual root matter from the prior season.
Vegetable and Horticultural Crop Bed Preparation
Market garden operations growing tomatoes, potatoes, onions, or leafy greens across Colombia's highland municipalities — Boyacá, Nariño, Cundinamarca — depend on fine seedbed preparation. The pto tiller gearbox configuration makes it straightforward to run at controlled depth, producing the loose, well-aerated tilth that transplanted seedlings and direct-seeded vegetables require for rapid root establishment.
Sugarcane Ratoon Management
Sugarcane producers in the Cauca Valley sometimes use rotary tillers in inter-row management and ratoon preparation between cutting cycles. The high torque output of this rotary cultivator gearbox handles the dense root mat and organic matter left after harvesting, incorporating it into the soil profile and improving the physical conditions for the next ratoon cycle without requiring heavy disc harrow passes.
Cover Crop Incorporation
Farmers using leguminous cover crops — mucuna, lablab, or velvet bean — for soil improvement before main season planting rely on rotary tillers to incorporate the green mass. The EP-TLZ-21J rotary tiller gearbox handles this type of operation effectively, cutting and turning both the plant material and top soil layer simultaneously. This supports the carbon-building and nitrogen-fixing goals of sustainable soil management programs that are increasingly common across Colombia's commercial farming sector.
Orchard Floor Management
In avocado, mango, and citrus orchards, the strip tilling approach — tilling only the planting row while leaving inter-row grasses intact — is gaining ground as a soil conservation practice. A compact tiller equipped with this gearbox rotary cultivator unit can be used for precise strip preparation during replanting or rehabilitation of orchard blocks, without the soil disturbance and erosion risk associated with full-width cultivation across slopes.
6. Common Troubleshooting Guide
Even a well-built tiller gearbox will eventually present symptoms that require attention. Catching these early prevents minor issues from becoming failures that take equipment out of service during critical planting or land preparation windows. The table below outlines the most frequently reported problems and the recommended diagnostic responses.
| Symptom | Likely Cause | Recommended Action |
|---|---|---|
| Grinding or whining noise during operation | Low or contaminated oil; worn gear surfaces | Drain and inspect oil; refill with SAE 80W-90; check gear condition |
| Excessive vibration | PTO shaft misalignment; loose mounting bolts | Re-check alignment; torque all mounting fasteners to spec |
| Overheating housing after short run time | Insufficient lubrication; operating beyond rated load | Verify oil level; reduce tilling depth or speed to match gearbox rating |
| Oil leaking from shaft seals | Worn lip seals; overfilled oil reservoir | Replace NBR lip seals; drain to correct level as per dipstick mark |
| Reduced blade speed at normal PTO input | Gear wear reducing power transfer efficiency | Inspect gear teeth under load; consider gear set replacement if wear exceeds 15% |
| PTO shaft fails to engage smoothly | Worn PTO clutch or shear bolt failure | Inspect and replace shear bolt; check clutch pack condition |
7. Regulatory and Compliance Considerations
Agricultural machinery components sold and used across different jurisdictions are subject to various regulatory frameworks. Buyers in Colombia and other markets should verify that the components they source meet both national requirements and any applicable international standards for their specific machinery application.
Colombia (ICA and Technical Standards)
In Colombia, agricultural machinery and implements fall under the oversight of the Instituto Colombiano Agropecuario (ICA) for health and biosecurity aspects, and ICONTEC for technical standardization. The NTC (Norma Técnica Colombiana) standards applicable to agricultural machinery components reference dimensional and safety requirements for PTO-driven equipment. Importers and distributors of tractor implements should confirm that the specifications of replacement gearboxes align with the implement manufacturer's original approval. Colombia's Resolution 2400 and related occupational safety frameworks also establish requirements for operator protection in agricultural mechanization contexts.
European Union (Machinery Directive 2006/42/EC and ISO 11684)
For buyers in EU member states or exporters shipping to Europe, the Machinery Directive 2006/42/EC sets essential health and safety requirements for all agricultural machinery and its components, including PTO-driven gearboxes. ISO 11684 governs safety signs and hazard pictorials on agricultural equipment. Gearboxes intended for sale in the EU market should carry CE marking where applicable and documentation of conformity with EN standards relevant to PTO-driven implements.
United States (ASABE Standards)
In the North American market, the American Society of Agricultural and Biological Engineers (ASABE) publishes standards for PTO shaft dimensions (ASABE S201), drive shaft guarding, and gearbox performance ratings. The 1-3/8″ Z6 spline profile on the EP-TLZ-21J rotary tiller gearbox input shaft conforms to the ASABE/ISO 500 standard for Category 2 PTO shafts, which covers the 540 rpm speed class used in this gearbox.
Other Markets (ISO and FAO Guidance)
ISO 11684 (safety signs), ISO 11684-1 through -3, and FAO guidance on agricultural mechanization safety all establish baseline expectations for how agricultural power transmission equipment should be designed, labeled, and maintained. Buyers in markets across South Asia, Southeast Asia, and Sub-Saharan Africa — where rotary tillers are also widely used — should consult local agricultural ministry requirements alongside these international references when specifying replacement gearboxes for fleet maintenance programs.
