EP-Post Hole Digger Gearbox EP16
The EP-Post Hole Digger Gearbox EP16 is an industrial-grade right-angle bevel gearbox engineered to deliver exceptional torque output for PTO-driven auger applications. Built with a 3:1 reduction ratio and rated at 20 HP input, the EP16 transforms standard 540 r.p.m. tractor PTO power into 756 Nm of usable output torque — giving operators reliable performance in demanding soil conditions ranging from compact loam to rocky sub-soil layers.

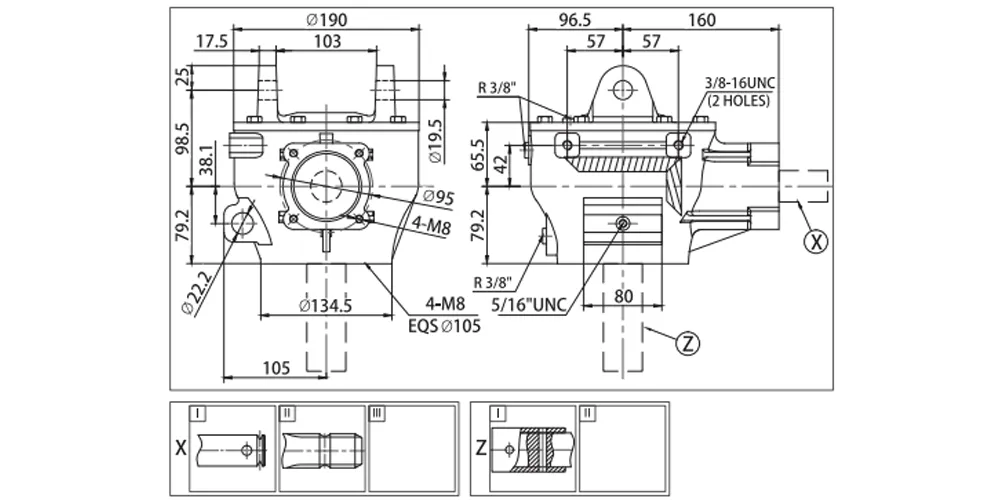

1. Technical Specifications
The following table presents the full performance parameters for the EP16 post hole auger gear box. All values reflect standard operating conditions using a 540 r.p.m. tractor PTO input. Engineers and procurement managers sourcing a digger gearbox for precision-matched installations will find these figures useful for system design and compatibility verification.
| Model | Ratio | Input (r.p.m) | Input Power (kW) | Input Power (HP) | Output Torque (Nm) | Input Shaft Type |
|---|---|---|---|---|---|---|
| EP16 | 3:1 | 540 | 14.7 | 20 | 756 | X (Cross / Cruciform) |
Note: Performance figures are based on standard ambient conditions. For extended-duty or high-cycle applications, consult our engineering team for derating factors and service interval adjustments.
2. Five Key Product Advantages
1. Precision 3:1 Bevel Gear Reduction
The EP16 uses a precisely machined bevel gear set to achieve a clean 3:1 speed reduction at 540 r.p.m. input. This ratio is specifically matched to the torque demands of post hole digging in medium to hard soils, giving operators the rotational force needed to drive auger bits of 6 to 12 inches in diameter without stalling or overloading the tractor's drivetrain. The result is smooth, predictable performance that reduces mechanical stress on every component in the power path.
2. Heavy-Duty Cast Iron Housing
The gearbox housing is constructed from high-grade cast iron, offering the structural rigidity needed to absorb shock loads when the auger encounters rocks, tree roots, or compacted gravel layers. Cast iron provides excellent vibration damping, which protects internal gear teeth and bearing races from impact fatigue. This is a critical feature for any post hole digger gearbox operating in agricultural, utility, or construction environments where ground conditions are unpredictable.
3. Direct Drop-In Replacement Compatibility
Sourcing a reliable replacement post hole digger gearbox can be a challenge when machines are down and field operations cannot afford delays. The EP16 is dimensioned as a direct-fit replacement for many common OEM units used on three-point hitch post hole diggers, including popular configurations from leading agricultural equipment brands. This compatibility reduces installation time significantly and allows operators to return their equipment to service with minimal workshop intervention.
4. 756 Nm Peak Output Torque
Rated at 756 Nm of continuous output torque, the EP16 delivers the rotational force that demanding post hole applications genuinely require. Operators working in clay-heavy soils, rocky terrain, or hardpan conditions will find this torque headroom invaluable. It means the gearbox can sustain full-load drilling cycles over extended shifts without exhibiting thermal distress or accelerated wear on critical internal surfaces. This output capacity also leaves a meaningful safety margin when oversized auger bits are used.
5. Sealed Bearing Arrangement for Extended Service Life
Both the input and output shafts are supported by sealed bearing assemblies rated for high radial and axial loads, which are common in auger-type applications where the bit pushes back laterally against the gearbox during penetration. The seals prevent soil dust, moisture, and crop debris from entering the bearing races, a problem that is responsible for the majority of premature gearbox failures in field conditions. Fewer bearing replacements mean lower total operating costs over the life of the machine.
3. How the Post Hole Digger Gearbox Works
The EP16 operates on a well-established mechanical principle. The tractor's power take-off shaft (PTO), spinning at 540 r.p.m., connects to the gearbox's input shaft via a standard PTO driveline with a shear bolt or overrunning clutch for overload protection. Inside the housing, the input shaft carries a matched set of spiral or straight bevel gears that mesh with the driven bevel gear mounted on the output shaft, which is oriented perpendicular to the input — typically pointing straight down toward the soil surface.
The gear tooth geometry of this tractor auger gearbox reduces the input speed by the 3:1 ratio while simultaneously multiplying the torque proportionally — minus a small efficiency loss due to gear mesh friction and oil churning, which is typically below 5% in well-maintained units. The output shaft then drives the auger hex adapter, connecting to the digging bit. As the auger rotates, its helical flighting cuts into the soil and transports the spoil upward and away from the hole. The operator controls penetration depth by raising and lowering the three-point hitch using the tractor's hydraulic remote.
Internally, the gearbox oil bath lubricates the gear mesh and bearing surfaces continuously. The oil level should be checked and topped up at regular intervals using the fill plug located on the housing. For the pto auger gearbox to perform reliably across a full field season, the oil should be changed after the first 50 hours of operation and subsequently at intervals not exceeding 250 hours, using a gear oil grade specified in the product documentation.
5. Materials and Build Quality
Every material selection in the EP16 is driven by a single objective: long service life in harsh, outdoor environments. The housing is grey cast iron, a material chosen for its combination of compressive strength, excellent machinability for tight bore tolerances, and inherent damping properties that prevent resonance-driven gear noise at operating speeds. Unlike fabricated steel housings, cast iron housings maintain their dimensional stability under cyclic thermal loading — an important characteristic when the gearbox alternates between cold morning starts and sustained full-load operation in afternoon heat.
The gear blanks are manufactured from alloy steel, case-hardened and precision-ground to achieve the surface hardness and tooth profile accuracy required for quiet, efficient power transmission. Case hardening provides a tough outer layer that resists abrasive wear, while the ductile core of each gear tooth absorbs shock loads without fracturing. The output shaft is constructed from medium-carbon alloy steel, heat-treated and machined to the dimensional tolerances needed for a secure, wobble-free connection to the auger hex adapter or keyed flange coupling.
Bearing selection follows industry-standard deep-groove or tapered roller configurations depending on shaft load direction. The input shaft bearings are sized for radial loads generated by the bevel gear mesh, while the output shaft bearings must handle combined radial and thrust loads as the auger engages the soil. All sealing elements are nitrile rubber, compatible with the petroleum-based and synthetic gear oils typically specified for this class of post hole gear box.
5. Application Scenarios
The EP16 post hole digger gearbox covers a wide range of practical field applications. Below are common use cases where this unit excels. Customers sourcing a post hole digger gearbox for sale often find that the EP16 meets the requirements across multiple site types without modification.
Agricultural Fencing
One of the most common uses for any pto post hole digger gearbox is installing fence posts across pastures, paddocks, and property boundaries. The EP16 is particularly well-suited for this task because its 756 Nm output torque easily handles 6- to 9-inch auger bits in clay, sandy loam, and mixed-rock soils typical of cattle and sheep ranching operations. Agricultural producers across North America, South America — including those searching for a tractor post hole digger Colombia solution — and Australia rely on this class of gearbox for seasonal fencing campaigns covering hundreds of post positions per day.
Orchard and Vineyard Planting
Tree and vine planting operations require precise hole diameters and depths across large numbers of planting positions. The EP16, as a matched earth auger gearbox, can be paired with tree planting auger bits ranging from 9 to 18 inches in diameter when connected to an adequately powered tractor. Orchardists and viticulture operations value the consistent hole quality this gearbox delivers, since irregular hole geometry affects root establishment and irrigation drainage around newly planted trees.
Utility Pole and Sign Installation
Contractors responsible for installing utility poles, road signage, and rural mailboxes frequently require a compact, tractor-mounted post hole digger gearbox that can operate in roadside conditions with limited access for larger machinery. The EP16 mounts to a standard three-point hitch and allows a compact utility tractor to complete these tasks efficiently. Telecommunications and power line installation contractors who need reliable post hole digger gearbox parts availability also favor units like the EP16 for their maintenance supply chains.
Rural Construction and Foundation Drilling
Rural shed foundations, deck footings, carport columns, and agricultural building supports often require concrete piers drilled 18 to 36 inches deep. A post hole gearbox rated at 20 HP and 756 Nm provides sufficient torque to drive 10- to 12-inch diameter rock auger bits into moderately consolidated subsoil. Building contractors who work away from urban centres value the self-contained nature of a tractor-PTO setup — no generator, no hydraulic power unit, and no separate compressor required on the job site.
Environmental Restoration and Reforestation
Government-funded and NGO-led reforestation projects in Latin America — including Colombia, Peru, and Brazil — as well as South-East Asia and sub-Saharan Africa increasingly rely on mechanised planting to achieve large-scale targets. A compact tractor fitted with the EP16 can dramatically outpace manual hole digging in both speed and hole consistency, making mechanised planting viable for even volunteer-staffed projects. Organisations sourcing equipment for an agricultural gearbox post hole digger Colombia project will find the EP16 a cost-efficient solution aligned with the scale of modern reforestation work.
Irrigation and Drainage Infrastructure
Installing subsurface drainage tubes, irrigation risers, and soil moisture sensor ports all require accurately placed holes drilled to consistent depths. The EP16's controlled output torque and smooth rotational delivery reduce the risk of hole wall collapse — a common problem when excess torque is applied at low speed — which is critical when the drilled hole must accommodate a precisely sized tube or fitting. This makes the EP16 a preferred choice for irrigation engineers and agronomy consultants managing large-scale water management systems.
6. Compliance, Standards and Regional Regulations
Understanding the regulatory environment governing post hole digger gearbox equipment is essential for procurement managers, distributors, and end-users across different markets. Compliance not only ensures operator safety but is increasingly a prerequisite for importation, insurance coverage, and participation in public-sector supply contracts.
United States: The Occupational Safety and Health Administration (OSHA) under 29 CFR 1928 (Agriculture) and 29 CFR 1910 (General Industry) mandates guarding requirements for rotating PTO shafts and associated drivetrain components. The EP16, when used with a properly guarded PTO driveline, meets the spirit of these requirements. Additionally, ASME B56 and related mechanical power transmission standards influence how gearboxes and their mounting systems should be designed. Machinery sold in the United States should carry documentation showing conformance with applicable ANSI standards.
European Union: The EU Machinery Directive 2006/42/EC requires that agricultural and construction machinery — including post hole digger attachments — meet essential safety requirements before the CE marking can be affixed. Post hole digger assemblies exported to EU member states must comply with EN ISO 11684 (safety signs) and EN 1553 (agricultural machinery interchangeability). The tractor linkage interface must conform to ISO 730 for three-point hitch dimensions and ISO 500 for PTO shaft specifications.
Colombia and Latin America: The Instituto Colombiano de Normas Técnicas y Certificación (ICONTEC) manages technical standards in Colombia. Agricultural machinery imports are governed by INVIMA and the Colombian Ministry of Agriculture (MADR) regulations. Importers seeking a certified post hole digger gearbox supplier Colombia or arranging post hole digger gearbox import Colombia should ensure products are accompanied by technical datasheets, material certifications, and third-party inspection reports acceptable to DIAN (Colombian customs). Many distributors in Bogotá, Medellín, Cali, and Barranquilla require CE or equivalent certification as a proxy indicator of build quality.
Australia: Work Health and Safety (WHS) regulations administered at the state level require post hole diggers to carry adequate guarding and be operated only by trained personnel. The Australian Standard AS 1021 covers agricultural tractor requirements, while AS 4024 addresses safeguarding of machinery generally. Operators in Queensland and New South Wales, where large-scale cattle grazing and sugar cane planting create significant demand for post hole equipment, must ensure their gearbox-equipped machinery complies with state-level WHS codes of practice.
ISO Quality Management: Our manufacturing facility operates under an ISO 9001:2015 quality management system, which governs every stage of gearbox production from raw material inspection through final functional testing. This certification provides buyers worldwide — including those placing post hole digger gearbox bulk order Colombia or arranging post hole digger gearbox wholesale Colombia shipments — with documented assurance that every unit leaving the production line meets a defined and audited quality standard.
7. About Us
Our engineering team has been designing and manufacturing agricultural power transmission equipment for decades. Every post hole digger gearbox that leaves our production floor has passed through a structured quality inspection process that includes dimensional verification, gear tooth contact pattern analysis, oil seal integrity testing, and a loaded run-in test. We are not a trading company — we operate our own machining, heat treatment, and assembly facilities, giving us direct control over every stage of production.
We operate with the conviction that quality, traceability, and honest communication are the foundations of lasting B2B relationships. Customers requesting a post hole digger gearbox catalog Colombia or a formal quotation for post hole digger gearbox custom order Barranquilla will receive a detailed response from our sales engineering team within one business day.
WorkShop
8. Related Products — One-Stop Agricultural Supply
Beyond the post hole digger gearbox, we supply the complete range of agricultural power transmission components your operation requires. Our full-system approach means you can source matched parts — correctly rated and dimensionally compatible — from a single, technically supported supplier. This eliminates cross-supplier compatibility issues and simplifies your supply chain. We manufacture and supply PTO shafts, agricultural chains, sprockets, and a full catalogue of gear-driven implements for tractors and self-propelled machines.
PTO Shafts
Our telescoping and fixed-length PTO driveshafts are manufactured to ISO 500 specifications and are sized to match the EP16 input shaft cross (X) profile directly. Every shaft is balanced and shielded for OSHA-compliant guarding.
Agricultural Chains
Roller chains, bush chains, and leaf chains for combines, balers, planters, and auger drive systems are available in standard and heavy-duty series.
Sprockets
We stock a broad range of agricultural sprockets in plain bore, taper bore, and QD configurations covering ANSI and DIN chain standards from #35 through to #120. Custom tooth counts and materials — including stainless steel for corrosive environments — are available with a standard lead time from our machining facility. Our sprockets are a trusted system match for the chain ranges listed above, ensuring consistent pitch engagement and reduced chain wear throughout the drive's service life.
Frequently Asked Questions
Q1. What is the best post hole digger gearbox for a 20 HP compact tractor used in clay soil conditions?
The EP16 is specifically rated at 20 HP input and 756 Nm output, making it an excellent match for compact tractors operating in clay-rich soils. The 3:1 reduction ratio keeps auger rotation slow enough to generate maximum torque at the bit face without overloading the tractor's PTO clutch. For particularly stiff clay layers, pairing the EP16 with a rock auger bit or a pilot-point auger is recommended to reduce the initial penetration force required.
Q2. Where can I find a reliable post hole digger gearbox supplier in Colombia for bulk agricultural fencing projects?
We supply the EP16 and related models to distributors and dealers across Colombia, including in Bogotá, Medellín, Cali, and Barranquilla. We can accommodate both single-unit orders and large post hole digger gearbox bulk order Colombia requirements. Please contact our export sales team with your project specifications, delivery timeline, and preferred Incoterms for a formal quotation. We can also provide DIAN-ready import documentation and technical datasheets in Spanish upon request.
Q3. How do I know which replacement post hole digger gearbox will fit my existing three-point hitch digger attachment?
The key dimensions to verify are: the input shaft profile (X-type cross, round keyed, or splined), the mounting bolt pattern on the gearbox housing, the output shaft diameter and keyway dimensions, and the overall housing envelope. The EP16 uses an X (cross) input shaft profile and is designed for direct replacement of many common OEM units. If you can provide the OEM brand name, model number, or a photograph of the original unit with key dimensions, our technical team can confirm compatibility before you place an order.
Q4. What gear oil type and service interval should I use for the EP16 post hole digger gearbox to maximise its service life?
We recommend a GL-5 rated 80W-90 or 85W-140 gear oil for the EP16, depending on the ambient temperature range at your operating site. In cooler climates (below 5°C average operating temperature), a lower-viscosity 75W-90 GL-5 oil is preferable for cold-start lubrication. Perform the initial oil change after the first 50 hours of operation to remove any run-in metal particles. Thereafter, change the oil every 200–250 hours or at the start of each operating season, whichever comes first. Always check the oil level via the inspection plug before each working day.
Q5. How does a PTO post hole digger gearbox differ from a hydraulic post hole digger, and which should I choose for my farm?
A PTO-driven post hole digger gearbox, like the EP16, takes its power directly from the tractor's mechanical power take-off shaft, making it highly energy-efficient and simple to maintain. It is the preferred choice for tractors that do not have a dedicated hydraulic outlet or where the tractor's hydraulic pump capacity is already committed to other functions. A hydraulic post hole digger uses the tractor's auxiliary hydraulic circuit and can offer variable speed control, but requires a higher-flow hydraulic system and more complex plumbing. For most agricultural fencing and tree planting applications on farms with standard PTO-equipped tractors, the PTO pto post hole digger gearbox option delivers the best combination of power, simplicity, and operating cost.
Q6. What post hole digger gearbox parts should I keep in stock to minimise downtime during a fencing season?
For a fleet of one to three post hole diggers, the recommended minimum spare parts inventory consists of: one complete input shaft oil seal set, one output shaft oil seal set, one set of input bearings, one set of output shaft bearings, and a sufficient quantity of GL-5 80W-90 gear oil for one full change per unit. For fleets running five or more units across remote locations, also stocking one complete spare gearbox assembly reduces mean time to repair to under 30 minutes in the event of a catastrophic housing failure. Our parts team can assemble a recommended spare parts kit tailored to your fleet size upon request.
Q7. Is the EP16 post hole digger gearbox CE certified, and can it be legally imported into European Union countries for commercial agricultural use?
The EP16 gearbox is a component part and is typically CE-marked as part of the complete post hole digger attachment assembly by the OEM assembler, in accordance with the EU Machinery Directive 2006/42/EC. As a standalone component, it is produced under our ISO 9001:2015-certified quality management system, and we can provide the technical file documentation, materials certificates, and dimensional inspection reports that OEM assemblers and importers need to complete their CE declaration of conformity. Please contact our export compliance team for specific documentation requirements for your target EU member state.
Q8. How long does it typically take to receive a wholesale post hole digger gearbox order shipped to a Colombian port?
Standard production and quality inspection time for a post hole digger gearbox wholesale Colombia order is 15 to 25 working days from confirmed purchase order and deposit receipt, depending on order quantity and current production scheduling. Sea freight transit from our port of export to Buenaventura or Cartagena typically adds 20 to 30 days. Customers requiring faster delivery can request air freight quotations or source from our finished goods stock where available. We recommend that first-time buyers allow a minimum of 60 days from order to delivery to Colombia for their initial inventory planning.
Q9. What auger bit sizes work best with the EP16 earth auger gearbox for fence post installation in rocky soil?
For rocky or consolidated soil conditions, the EP16 is best paired with a rock auger bit in the 6- to 9-inch diameter range. Larger diameter bits (10 to 12 inches) are feasible in medium-hardness ground but should be used with a pilot-point design to reduce initial penetration load. Avoid exceeding the gearbox's rated input HP with oversized bits in hard rock, as this can induce shock loads beyond the gearbox's design limits. For sites with significant rock content, the use of a shear bolt driveline coupling (included or available separately) is strongly recommended to protect the gearbox internals from sudden overload events.
